| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | HG or OEM |
| إصدار الشهادات: | ROHS,ISO9001 |
| رقم الموديل: | ألياف ضوئية |
| الحد الأدنى لكمية: | 10pcs |
| تفاصيل التغليف: | 1 قطعة / كيس PE |
| وقت التسليم: | 3-5 أيام عمل |
| شروط الدفع: | L/C ، T/T ، Western Union ، Moneygram |
| القدرة على العرض: | 2000 قطعة في اليوم |
| اسم: | جولة من النوع 6Cores LC الألياف الضوئية المصنوعة من المعجبين بأسلاك الألياف البصرية 0.9 مم | المصنع: | نعم |
|---|---|---|---|
| اختبار: | اختبار 100 ٪ قبل الشحن | نوع الموصل: | SC / FC / LC / ST / MU / DIN / D4 / MTRJ / MPO |
| عينات: | يدعم |

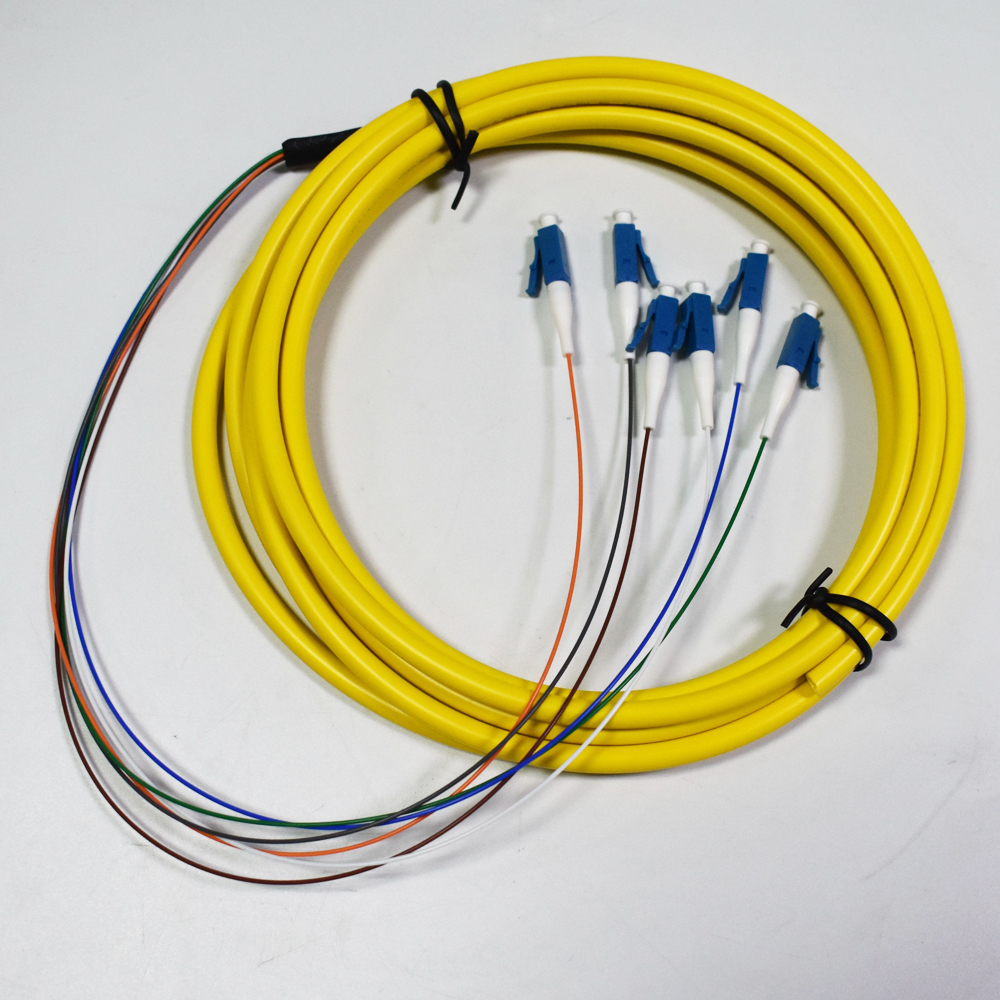

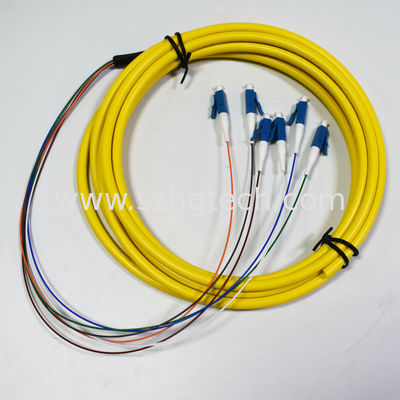

Round Type 6Cores LC Optical Fiber Pigtails Fanout 0.9mm Fiber Pigtails
The singlemode fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
HG also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
Our Advantage:
(1) Manufacturer
(2) 1pc MOQ
(3) Zero-Defects QA Program
(4) High Quality Materials
(5) Advanced Equipment & Tooling
(6) In-house Engineering
(7) Expert Technical Support
(8) 100% Product Testing
(9) 100% Product Guarantee
(10) Fast Turn Around
(11) Same-Day Manufacturing Available
Specification:
| Fiber Optic Patch Cord / Fiber Optic Pigtail | |||
| Feature: (1) Inner: Ceramic Ferrule (2) IEC Standard (3) Green Production, RoHS Standard (4) Excellent Polished and 100% tested. (5) High stability various environments (6) Customize order available |
Mode | SM | MM |
| Polish | UPC | PC | |
| Insertion Loss | Typical ≤0.2dB | ≤0.3dB | |
| Maximum ≤0.3dB | |||
| Return Loss | ≥50dB (UPC),≥60dB (APC) | ≥35dB | |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB (1000 times) | ||
| Vibration | ≤0.2dB (550Hz 1.5mm) | ||
| Tensile Strength | > 10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
Available :
Simplex/Duplex patch cord available
Fan-out available
Pigtail available
Various boot(cable) sizes available
FC/LC/SC/ST/MTRJ/MPO connectors available
LSZH and PVC cable
OEM Order:
1. Jacket Material:
4. Customize Cable Length: 0.5M/1M/2M/3M/5M to 100M
5. Packing:
How to correctly choose between PVC, LSZH and OFNP?
PVC Cable: PVC cable resistant to oxidation and degradation, is used for horizontal runs between the
table. It is also work for vertical runs if the building features a contained ventilation system running
through the duct work.
LSZH Cable: LSZH cable has a special flame retardant coating, and excellent fire safety
characteristics of low smoke, low toxicity and low corrosion. It is same to PVC cable for horizontal
runs between the table.
OFNP Cable: OFNP cable is a space within the building created by building components,
designed for the movement of environmental air, complies with the NFPA fire safety.
It is usually work for vertical runs between floors.
How to Choose The Right Fiber Optic Cable Type?
| Designation | Fiber Dia. (μm) |
Type |
100 BASE |
1000 BASE |
1000 BASE |
10G BASE |
40G BASE |
100G BASE |
| OM1 | 62.5/125 | Multimode | 2000 M | 275 M | 550 M | 33 M | No | No |
| OM2 | 50/125 | Multimode | 550 M | 82 M | No | No | ||
|
OM3 (Laser Optimized) |
50/125 | Multimode | 550 M | 300 M | 100 M | 100 M | ||
|
OM4 (Laser Optimized) |
50/125 | Multimode | 400 M | 150 M | 150 M | |||
| Singlemode | 9/125 | Singlemode | 5km at 1310nm | 5km at 1310nm | 10km at 1310nm |
PS: The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable, it is 4700 MHz.km while for OM3, it is 2000 MHz.km.
